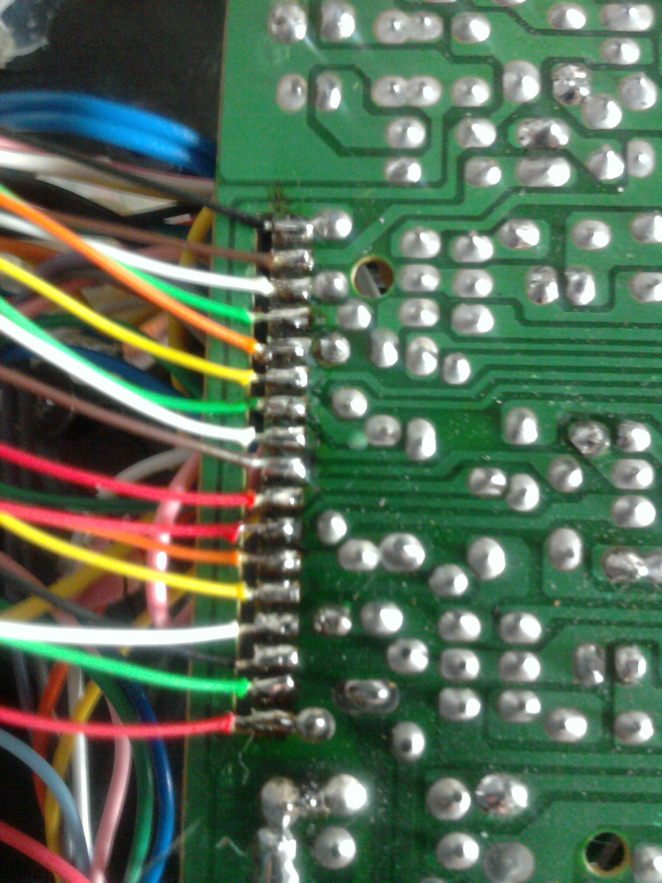

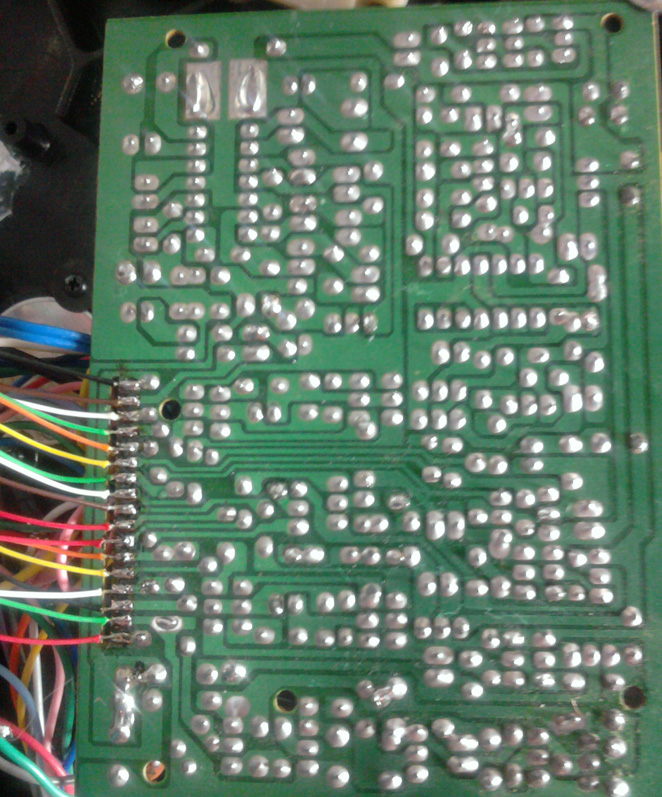

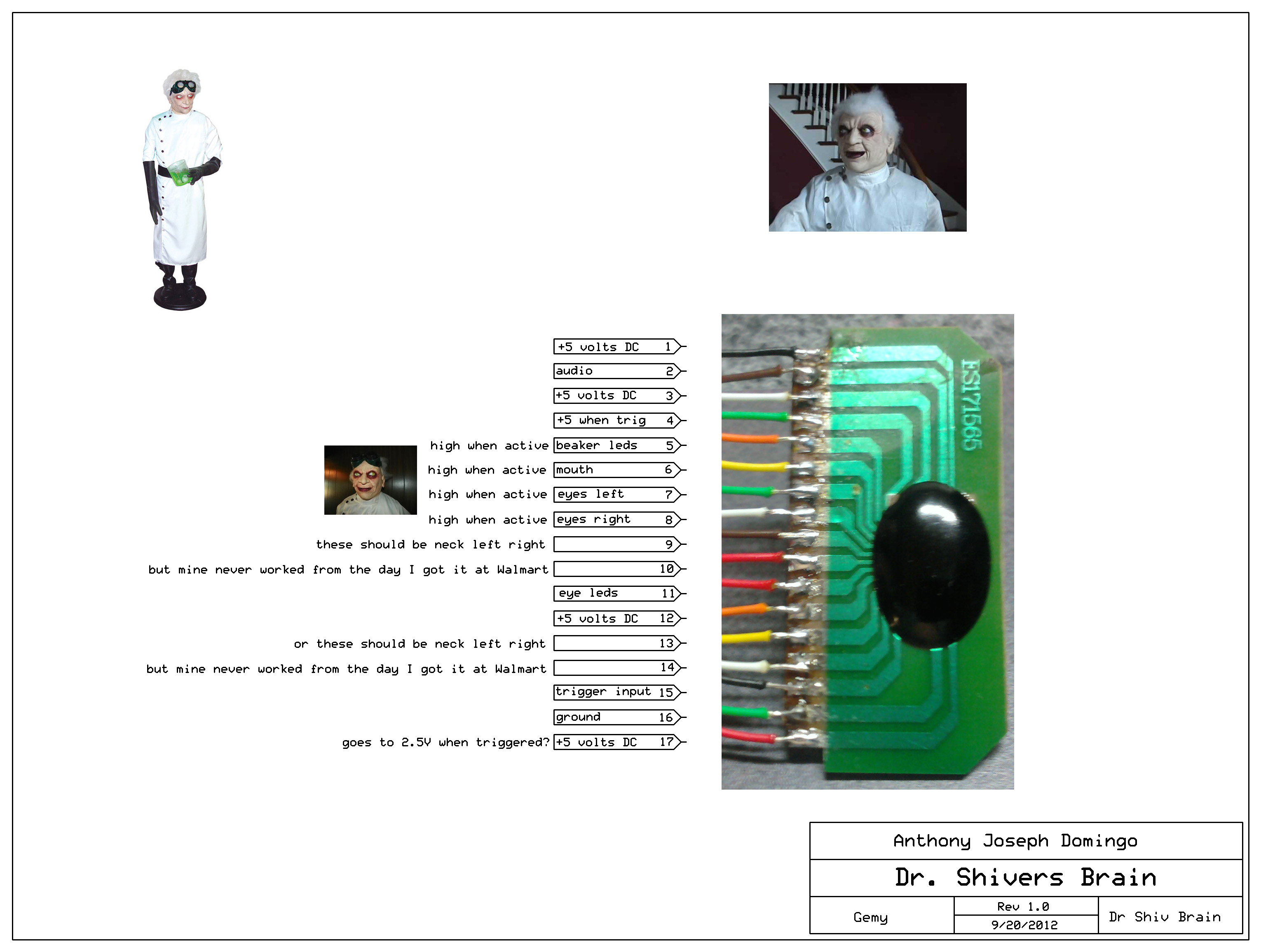

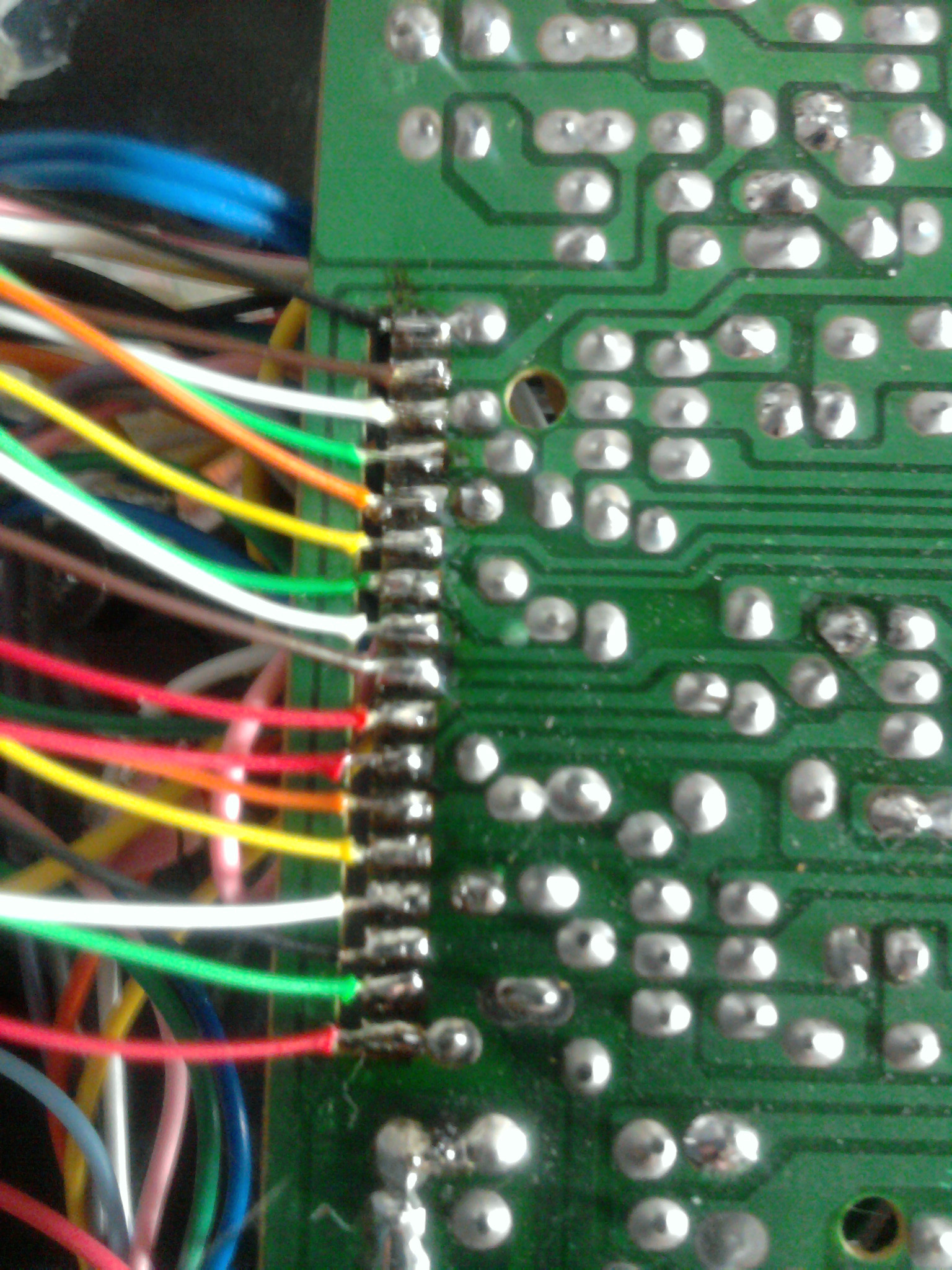

I spent a few minutes to remove Dr. Shivers brain and fashion an umbilical so I could easily probe it with the o-scope, I now have a Gilderfluke MiniBrick8 animation controller and a Gilderfluke SD25 audio player connected to Dr. Shivers. I can make him say and do anything I can Imagine . It can be programmed from the front three buttons on the MiniBrick8 or using the Windows based programming software called PCMACS. The MiniBrick8 also has DMX out to control strobe lights, RGB lights and fog machines. I use Sony Soundforge to record sound bites and add effects like reverb, pitch shift, echo, thunder, screams... use your imagination, Dr. Shivers has a whole new life now! My Edwardian Butler is next on the operating table. Below is a quick schematic/pin out for Dr. Shivers brain (ES171565), if anyone has additional info regarding the neck left right please contact me.
HACKING Dr. Shivers
why? because we can...
